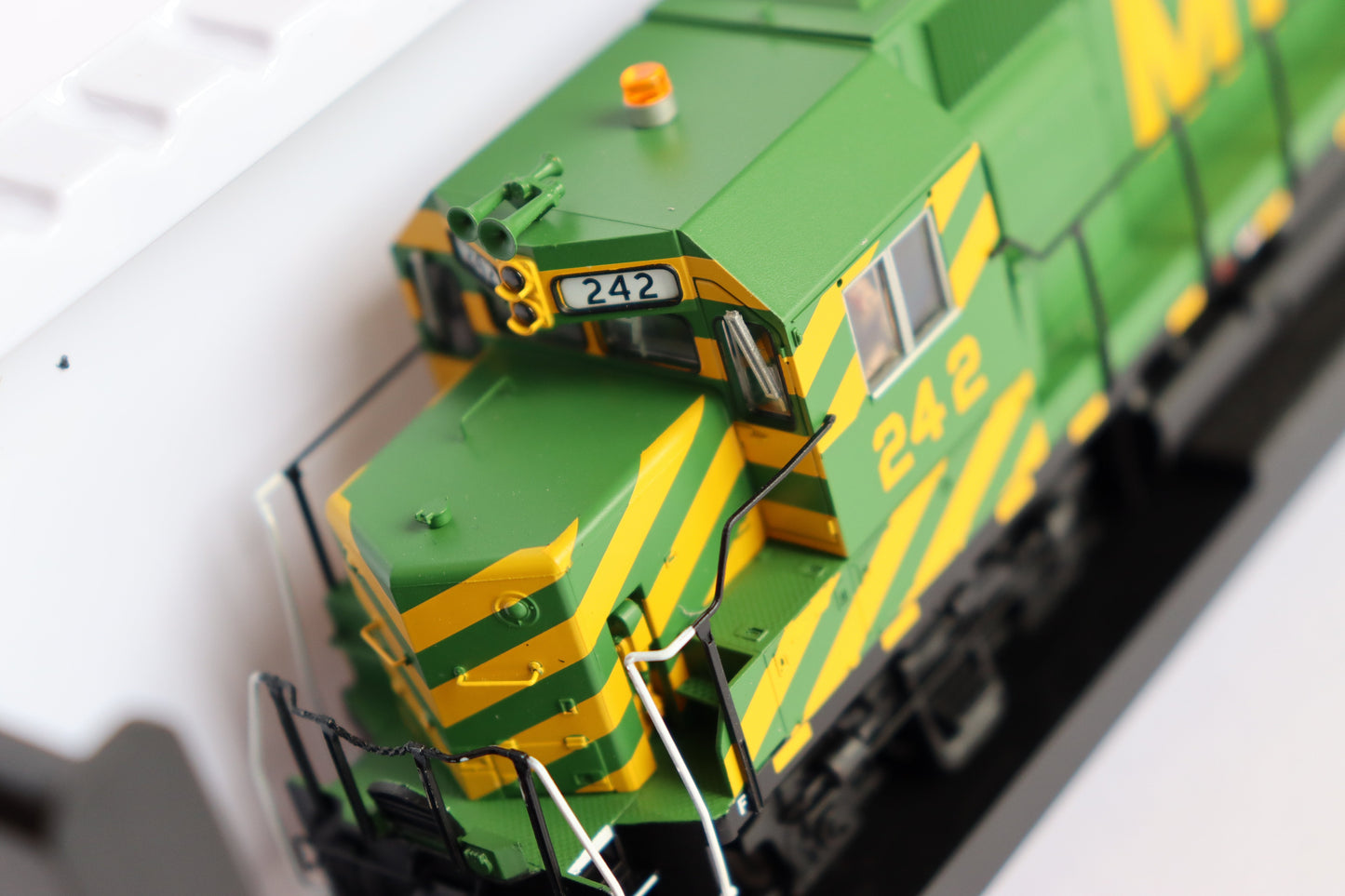

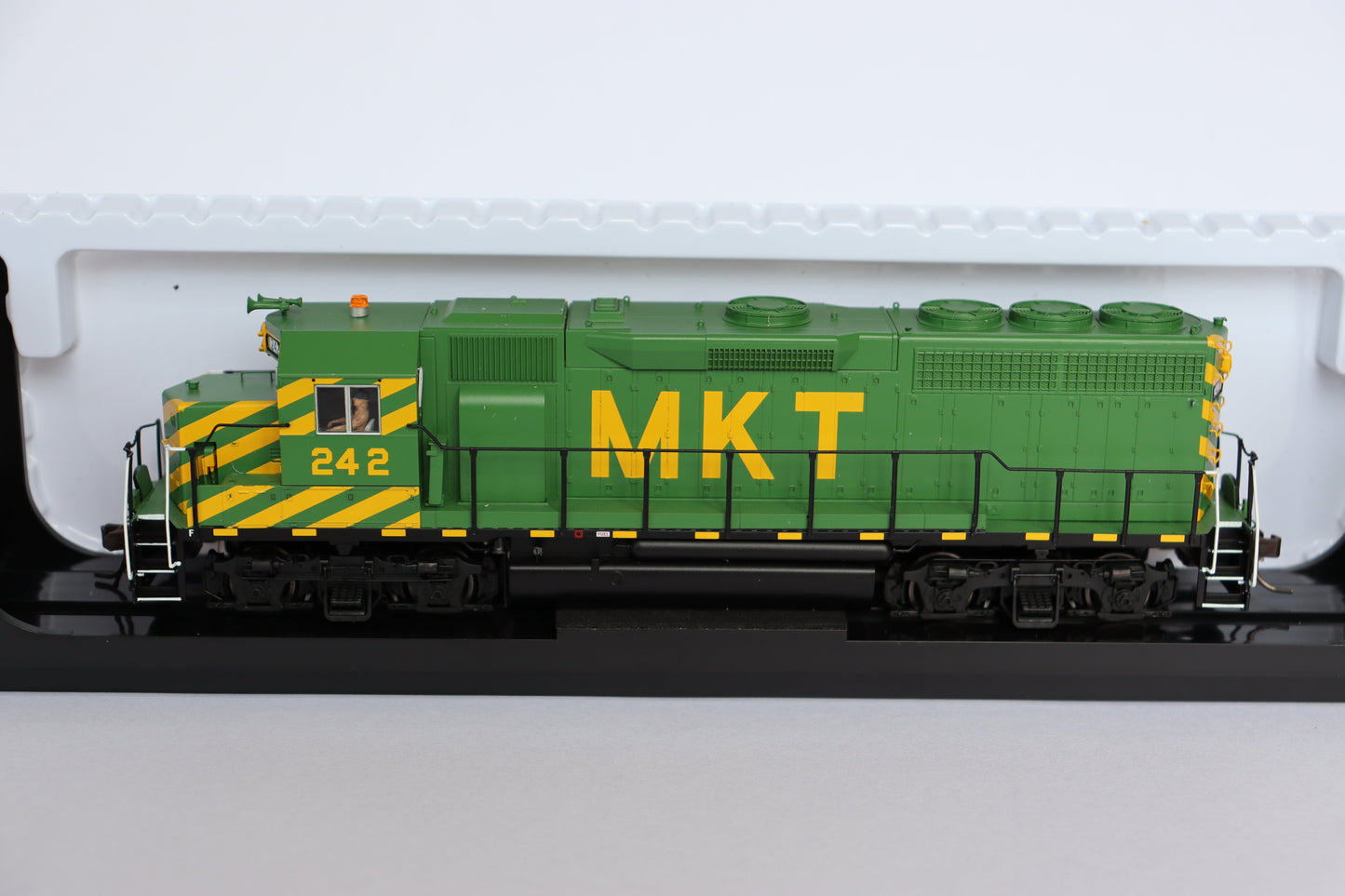

Atlas HO 10004035 - Gold Model - GP40 Diesel Locomotive "MKT" #242

Atlas HO 10004035 - Gold Model - GP40 Diesel Locomotive "MKT" #242

SKU:AHO-10004035

Regular price $299.95 USD
Regular price $299.95 USD Sale price $299.95 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
  • Road Name: MKT
  • Road Number: 242
  • Product Line: Gold Series
  • Scale: HO Scale
Features:
  • Golden-white LEDs
  • Realistic die-cast underframe
  • Five-pole skewed armature motor with dual flywheels for optimum performance at all speeds
  • Directional lighting
  • Factory-equipped with AccuMate® knuckle couplers
  • Detailed cab interior with crew
  • Separately-installed scale windshield wipers, metal grab irons and fine scale handrails
  • Movable drop steps
  • Walkway safety tread
  • Coupler cut bars
  • Multiple unit hoses and trainline hoses
  • Snowplow

Additional feature parts included but not installed (GP-40):

  • Electrical cabinet air filter box (ECAFB)
  • Two engine compartment roof vents which were added by many railroads sometime after delivery

Sound Features for Gold Series:

DCC Operation Features:

  • Supports all DCC-programming modes
  • Flexible mapping of function keys F0 to F28.
  • Follows all NMRA DCC standards and recommended practices.

Sound Functionality Features:

  • Over 20 sound effects are available, including engine start-up and shutdown, prime mover sounds through all eight notches, bell, air horn, air compressor, dynamic brakes and more.
  • There are 16 user-selectable horns, 2 user-selectable bells, and 2 user-selectable synchronized brake squeals.
  • Manual and Automatic Notching modes with the ability to change modes ”on the fly” are provided
    for true realism.

Atlas Master™ Series Silver Additional Features:

  • NMRA 8-pin plug for DCC (Decoder-ready)
Overview:

In 1966 EMD introduced a new line of locomotives based on the 16-cylinder 645-series prime mover. The “40-series” included a six-axle and four-axle model, the latter being the GP40. A total of 1,145 units were produced between 1966 and 1972. These turbocharged 3,000hp locomotives were used primarily in road freight service. The GP40 was a versatile locomotive that could be found across the US hauling drag freights over mountain passes and leading high-speed intermodal trains across flat terrain. Three rooftop radiator fans at the rear of the long hood differentiate a GP40 from its lower horsepower counterpart, the GP38, which has two fans at this location.

Concurrent with GP40 production, EMD offered a lower horsepower, non-turbocharged locomotive based on the same 645-series prime mover. The four-axle GP38 was rated at 2,000 hp and had the advantage of costing less than the GP40. A total of 727 units were produced between 1966 and 1971 when the model was superseded. The wheelbase of the GP38 was identical to that of the GP40. Both units shared the same EMD road-switcher style body that was introduced with the GP35 in 1963. A desire for standardization caused the GP38 to share the same wheelbase, frame and many external components as the GP40. The GP38 was purchased by large and small roads alike. It was routinely found in local and road freight service throughout the US. Many GP38s and 40s are still in service today.

Options on the Atlas GP38 and GP40 models include a long hood with or without dynamic brakes and an underframe with 2,600 or 3,600 gallon fuel tanks.
