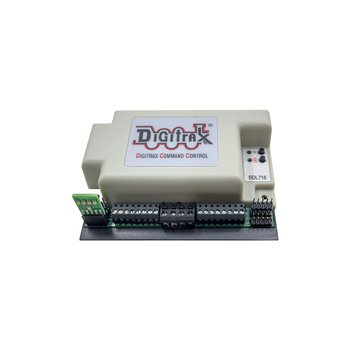

Digitrax BDL716 - Block Detector

Block occupancy detection for 16 (DS) occupancy sections.

• All plug-in connectors for simple and easy installation and service.
• User defined as 16 DS reporting addresses in 1 to 2000+ DS range.
• Easy setup with device Option Switches (OPSW)
• Powered by 2mm DC jack, 8V min to 22V max.
• Configured to operate with DCC booster power from; DCS52,DCS100, DCS210, DCS210+, DCS240, DCS240+ Command Stations,DB210 and DB220 boosters.
• Can split into two 8-DS areas to operate from two separate boosters.
• Optional Detection and Power status led connector for remote state indication, compatible with e.g. LT5C.

Instruction Sheet

Warranty & Repair
