Kadee HO 58 - Coupler, 9/32 Center (2 Pair)
Kadee HO 58 - Coupler, 9/32 Center (2 Pair)
SKU:KAD-58
Couldn't load pickup availability
- Product #: 58
- Product Line: Kadee
- Scale: HO Scale

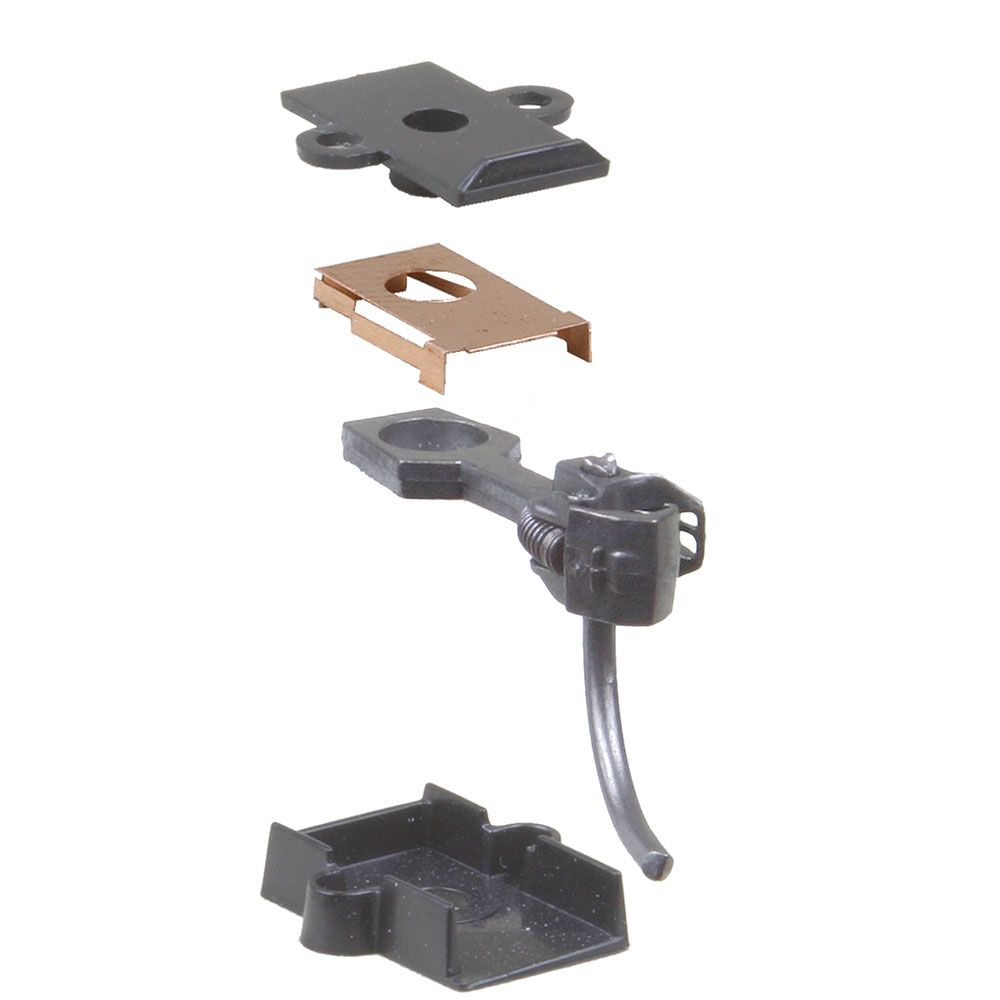

Package Includes:
- (2) Pair #58 "Scale" Metal Couplers - Medium Centerset Shank
- (2) Pair #634 Centering Spring NO.5® Style
- (2) Pair #232 Gearboxes
- (2) Spare #625 Knuckle Springs
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage. Use the provided insulated gearbox or insulated #28 coupler.
| #58 Coupler Specifications | |
|---|---|
| Shank Length | Medium - 9/32" (center of mounting hole to back of coupler head) |
| Shank Offset | Centerset |
| Mounting Height | 29/64" |
| Centerline | 25/64" |
| Trip Pin Height | 1/32" |
| Head Style | Scale |
| Centering Spring | #634 |
| Knuckle Spring | #625 |
| Shank Material | Metal |
| Knuckle Material | Metal |
| Color | Black |
| Compatible Gearboxes | #213, #232, #234, #242, Most manufacturer molded-on gearboxes* |
| #232 Gearboxes & Lids Specifications | |
|---|---|
| Material | Insulated Plastic |
| Dimensions | 29/64" L x 19/64" W x 7/64" H |
| Center Hole | 2-56 Insulated Screws |
| Side Holes | 0-48 Self-Tapping or 0-80 Machine Screws |
| Color | Black |
| Compatible Couplers | No.5®, #21, #22, #23, #24, #25, #26, #27, #28, #29, #58, #118, #119, #120, #141, #142, #143, #144, #145, #146, #147, #148, #149, #153, #156, #158 |
*Note: Some manufacturers now produce models with non-industry standard coupler pockets (molded-on gearbox). These shallower coupler pockets may require slight modification to the gearbox or coupler to function properly. If the model has a shallow molded-on gearbox, a #158 Whisker® coupler should be used instead of a #58 coupler. The top of the #158 Whisker® coupler shank may be filed thinner to fit the shallower cast-on coupler pockets.
While the No.5® was revolutionary, the #58 is evolutionary. We took our legendary No.5® coupler and shrank the size of the head and knuckle to create a coupler that's even more prototypical. These industry leading couplers feature an all metal construction, standard centering springs, and come complete with insulated draft gearboxes and lids. This is the perfect upgrade for the weak and drooping couplers that come on most factory rolling stock and locomotives. #58 couplers are manufactured to the strictest tolerances to ensure reliable operation for decades. And they're still made right here in the USA with legendary Made In America quality.
The #58 is interchangeable with the No.5®, #28, #118, #119, #148, #158, and most manufacturer's Medium Centerset OEM knuckle couplers.
Kadee® Magne-Matic® Couplers and Uncouplers are a complete system for your model railroad layout. We've designed every product to work harmoniously with the Magne-Matic® system so that you can focus on enjoying your hobby instead of troubleshooting issues. Magne-Matic® technology ensures smooth and reliable hands-free coupling and uncoupling anywhere.
Refer to our helpful Coupler Conversion Charts to determine the appropriate coupler to use on your model.
