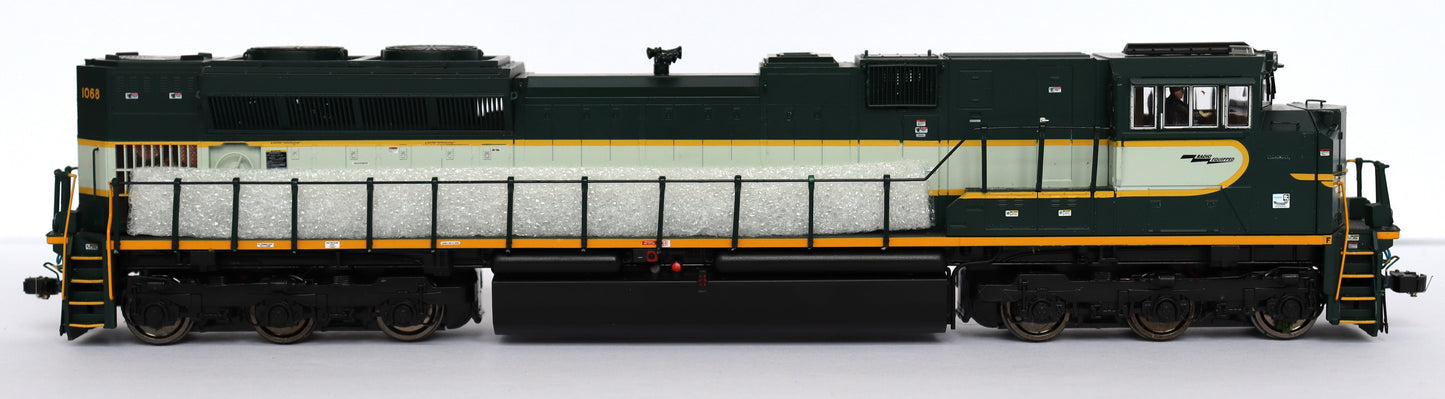

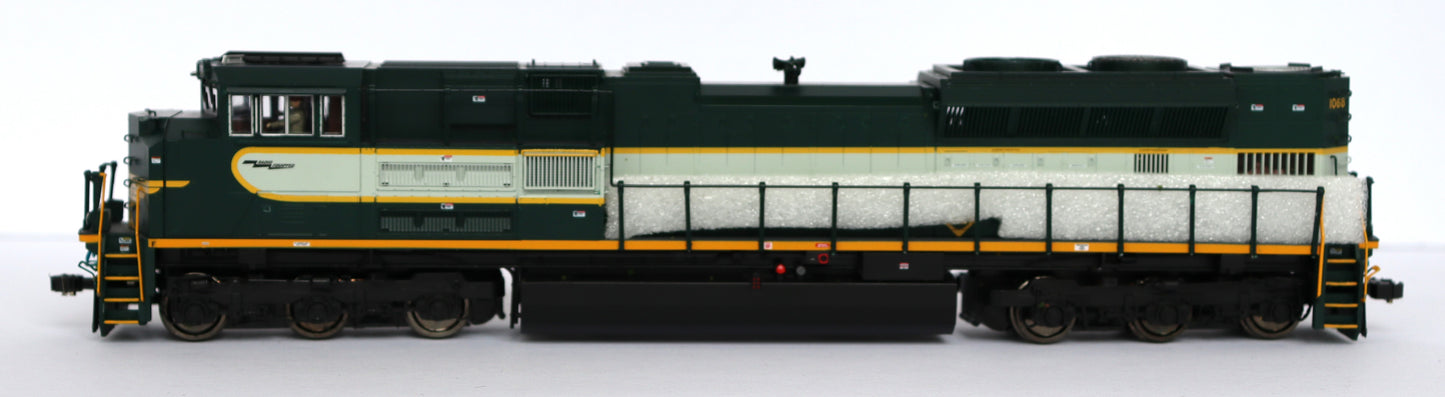

MTH HO 80-2245-1 - SD70ACe Diesel Engine (comfort cab) "Erie" #1068 w/ Proto-Sound 3.0 -Open Box-M2610

Announced Date:	2013
Released Date:	Jul. 2013
Individually Boxed:	N/A

• Road Name: Erie
• Road Number: 1068
• Product Line: MTH HO
• Scale: HO Scale

Features:

• Intricately Detailed ABS Body
• Authentic Paint Scheme & Cab Numbers
• Detailed Truck Sides, Pilots and Fuel Tank
• Die-Cast Metal Chassis
• Detachable Scale Snow Plow
• (2) Cab Figures
• Directionally Controlled Headlights
• RP-25 Metal Wheels Mounted On Metal Axles
• Powerful 5-Pole Precision Flywheel Equipped Motor
• Locomotive Speed Control in Scale MPH Increments
• Lighted Cab Interior
• Illuminated Number Boards
• Lighted Marker Lights
• Operating Ditch Lights
• (2) Scale Kadee Compatible Remotely Controlled Proto-Couplers
• On-Board DCC Receiver
• Operates On Code 70, 83, & 100 Rail Curves



Proto-Sound 3.0 equipped locomotives can be controlled in command mode with any DCC compliant command control system. While the user won't have access to all of the incredible features of Proto-Sound 3.0, independent control over the locomotive is possible. This means you can continue to use your existing DCC controller to independently control your other DCC equipped locomotives in addition to your Proto-Sound 3.0 locomotive on the same track at the same time.

When using a DCC controller, the following Proto-Sound 3.0 locomotive features are accessible:

• F0 Headlight
• F1 Bell
• F2 Whistle/Horn
• F3 Start Up/Shut Down
• F4 Rear Coupler
• F5 Front Coupler
• F6 Engine Sounds On/Off
• F7 Sound Volume
• F8 Ditch Lights Auto/On/Off
• F9 Forward Signal
• F10 Reverse Signal
• F11 Grade Crossing Signal
• F12 Cab Light On/Off
• F13 Extended Start Up
• F14 Extended Shut Down
• F15 Rev Up
• F16 Rev Down
• F17 Coupler Slack Sound
• F18 Coupler Close
• F19 One-Shot Doppler
• F20 Feature Reset
• F21 Idle Sequence 1
• F22 Idle Sequence 2
• F23 Idle Sequence 3
• F24 Ditch Lights Auto/On/Off
• F25 Brakes Auto/Off
• F26 Cab Chatter Auto/Off
• F27 Clickety-Clack Auto/Off
• F28 Coupler Slack Sound
• Proto-Sound 3.0 With The Digital Command System Featuring: Freight Yard Proto-Effects
• Unit Measures:10 9/16" x 1 7/16" x 2 3/16"
• Operates On 18" Radius Curves

Overview:

The SD70ACe is Electro-Motive Diesel's hope for the future. While designed to meet the Environmental Protection Agency's Tier-2 emissions requirements that took effect on January 1, 2005, this replacement for the SD70MAC also has a higher purpose: to recapture the lead in North American locomotive sales that EMD lost to General Electric in 1987.

Under the hood beats a third-generation model 710 diesel with 4300 horsepower; only slight modifications were needed to make the existing model 710 meet new emission standards. With 5000 such motors in service worldwide and a reputation for dependability, EMD reasoned that shop crews would prefer familiar technology.

Other than the prime mover, however, virtually every element of the SD70ACe has been re-thought to create a 21st century locomotive. Ergonomics were a prime consideration. The engine's angular nose offers the crew far better visibility than most other locomotives, and the cab is comfortable for engineers of almost any size. Digital screens provide a range of information on what is happening both inside the locomotive and out on the road. The cab easily accommodates a crew of three - an important factor in a modern world without cabooses. And there is, of course, a cupholder for the engineer.

The SD70ACe also offers, in EMD's words, "outstanding improvements in maintainability." All electrical wires are on the right side of the locomotive and all piping is on the left, with most pipes and wires routed under the frame so they can be serviced by a man standing outside the engine - rather than crawling around at the bottom of the engine room. And the time between service intervals has been doubled, from every three months to every six months.

After a year of testing on the road and at the Association of American Railroads' test track in Pueblo, CO, the first SD70ACe's ('e" stands for "enhanced") were delivered to CSX Transportation in 2004. Today they are rostered by nearly every North American Class 1 railroad. At the present time, mainline American railroads generally maintain dual fleets of locomotives. AC power is used for heavy coal hauling and hotshot intermodal traffic because AC traction motors offer higher starting tractive effort with the same horsepower. Less expensive, traditional DC power is used for more mundane duties. But with the SD70ACe, Electro-Motive hopes it may have the 21st Century successor to its 1949 Geep - a locomotive that can be nearly all things to all railroads.

New for 2008, M.T.H. introduces the SD70ACe as our first HO scale diesel, offered in a large variety of accurate paint schemes including the six-engine Union Pacific heritage fleet. Each one-of-a-kind heritage fleet locomotive honors a "fallen flag" railroad that is now part of the Union Pacific system. Our highly detailed model includes a broader range of features than you'll find on any other HO scale diesel, including operating flashing ditch lights; smooth performance from a three-scale-mile-per-hour crawl to full throttle; "cruise control" for steady speeds regardless of curves, switches and grades; built-in decoders for DCC and the M.T.H. Digital Command System (DCS); and a full range of sounds recorded from a prototype Union Pacific SD70ACe. If you're looking for modern motive power that's accurately detailed (our tooling allows us to produce up to eight different SD70ACe variations), smooth running, and a great deal of fun to operate, it doesn't get any better than this.

Did you know?

IntelliTrain, an option on the SD70ACe, uses cellular and GPS technology to allow a railroad's maintenance department to monitor operating conditions and problems as they occur out on the road - making diagnosis and repair considerably easier.
